LED High Bay Light 100W Badminton Stadium Lighting

Product Description

New LED High Bay Light 100W Sports Lights Badminton Stadium Lighting CE CB CCC China Factory Wholesale

100W LED High Bay Light Product Features:

1. High luminous efficiency, 120lm/W.
2. High CRI, Ra>80.

3. IP Grade:IP65
4. High Efficient Heat Heatpipe, better perforsmance in heat dissipation.
5. PVC acrylic lens design, uniform light spot, high transmittance.
6. Anodized on light body, good for light surface protection.
7. Ligh Cover use Sandblasting oxidation design,output light soft without yellow ring.
8. Heat Sink Aluminium 6063, good for thermal conductivity
9. Light Color(option): Warm White/Cold white,
10. Beam Angle(option): 60°/120°
11. Fitting way(option): Tube, Chain, Hook, Ring
12. High power factor, PF>0.95,
13. High efficiency, can reached 90%
14.Lifespan can be reached 50,000 hours
15. Certified By GMC CE ROHS CCC CB

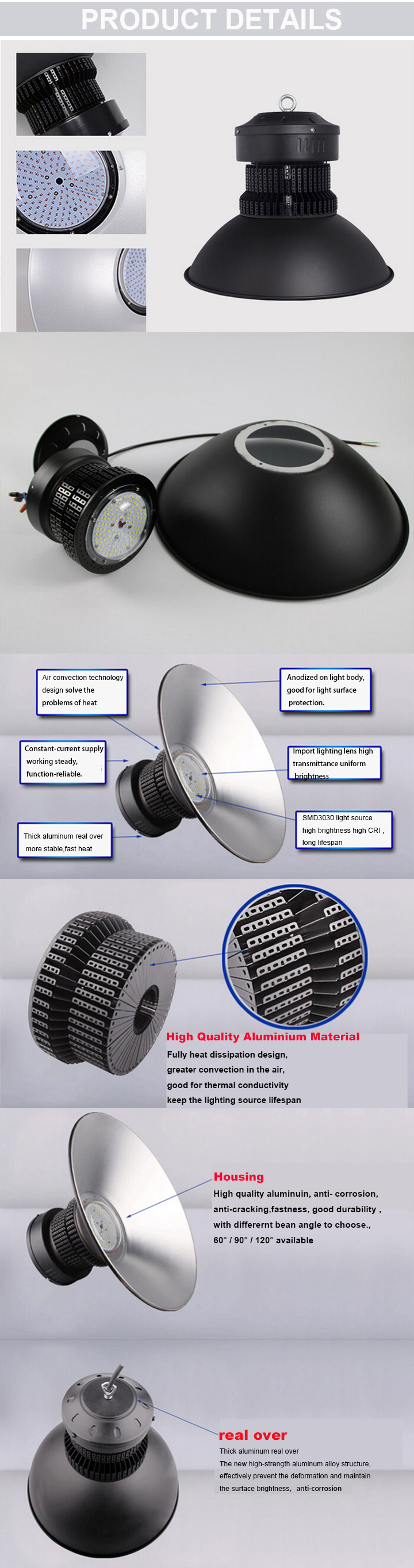

100W LED High Bay Light Product Details:


100W LED High Bay Light Spefications

LED Highbay Power 100w
Light Fixture Material Aluminum Alloy
LED Chip Epistar Or Bridgelux Other Brand Available
Cob LED Light Color Temperature 3000k, 6500k
CRI Ra≥80
Beam Angle Option 60° / 90° / 120°
Power Factor PF>0.95
Input Voltage AC100-277V
Working Life 50000 Hours
Warranty 5Years
Finishing Color Black
Wire Connection L(Brown) N(Blue) G(Green/Yellow)
100w LED High Bay Light Weight 4.2KG
Lamp Size 410*446mm
Lamp Part Carton Size 550*550*400mm(1SET/CTN)
Highbay Application
Widely Used In The Workshop , Factory , Warehouse , High Bay Toll Station , Gas Satation , Supermarket , Exhibition Hall , Stadium , Museum Etc

100W LED High Bay Light Installation Methods
